Product Details:
|
| Metal Material: | Aluminium, Iron | Rotation Capability: | 360-Degree |
|---|---|---|---|
| Spring Material: | Stainless Steel | Housing Orifice: | Diameter 2.0mm |
| Stem Diameter: | 0.51mm | Size: | One Inch |
| Highlight: | All Direction spray valve,ball spray valve and actuator,360 Degree Aerosol Valve |
||

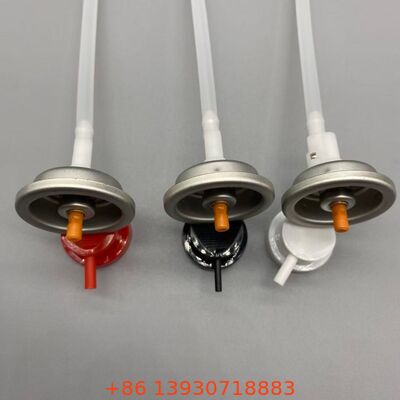

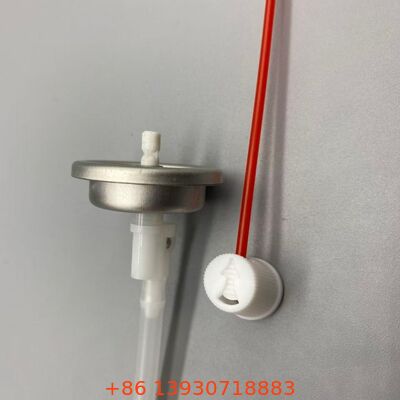

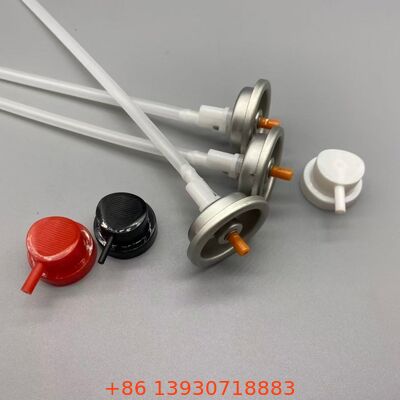

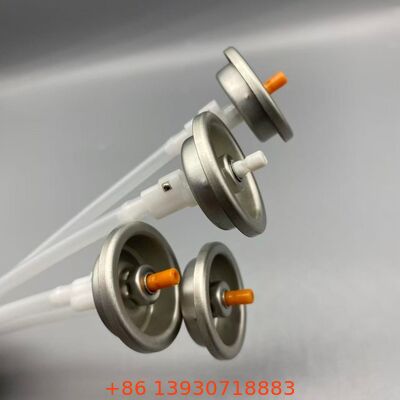

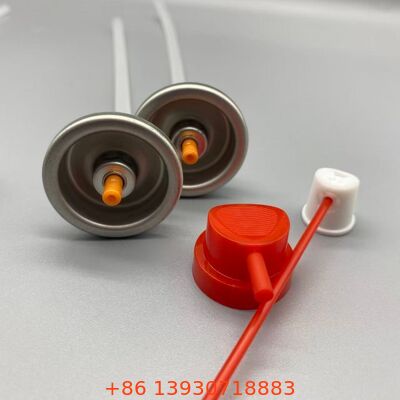

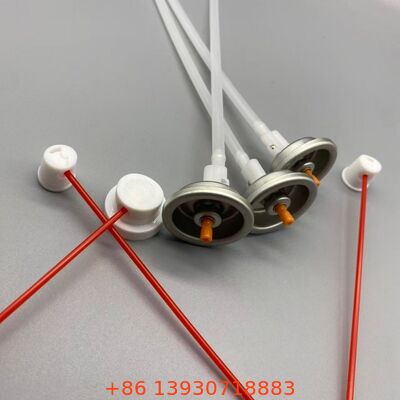

All Direction Spray Valve With Actuator, Full Angle Dispensing Valve For Multi-Scenario Universal Spraying Usage
Product Description:
The versatile All Direction Spray Valve With Actuator, also defined as omni-directional aerosol spray valve and full angle dispensing valve, is a multi-functional aerosol accessory designed for household, personal care and commercial scenarios. Equipped with a flexible and sensitive spray actuator, this full-angle spray valve breaks the limitation of traditional single-direction aerosol valves, enabling free spraying at any angle including inverted use, which is more convenient for daily and commercial operation.
Bullet Points:
Specific Application Scenario:
Ideal for professional industrial operation scenarios, including mechanical equipment deep cleaning, automotive chassis and engine maintenance spraying, factory metal component anti-rust coating, industrial equipment lubricant filling, and chemical reagent uniform spraying for industrial production. It perfectly adapts to hard-to-reach narrow gaps, irregular curved surfaces and overhead equipment positions that cannot be covered by ordinary one-way spray valves, meeting high-precision and full-coverage spraying demands of industrial manufacturing and maintenance work.
Specifications:
| Component | Part No. | Part Description |
| Mounting cup | 1-F2 | Both sides with clear lacquered tinplate ,with down dimples |
| Outer gasket | 1-G1 | Buna |
| Inner gasket | 1-B4 | Neoprene |
| Stem | 1-A7 | Orange color, double orifice 2X diameter 0.51mm |
| Spring | 1-C1 | Stainless steel |
| Housing | 1-D1 |
all direction valves housing tail orifice: diameter 2.0mm with stainless steel ball white |
![]()
![]()
![]()
![]()
FAQ:
Q: Can this dispensing valve provide comprehensive and uniform dispensing in a 360-degree direction?
A: Yes, the 360-Degree Dispensing Valve enables comprehensive and uniform dispensing, ensuring consistent coverage and precise distribution of liquids or fluids.
Q: Is this valve compatible with different fluids and viscosities?
A: Absolutely. This dispensing valve is designed to be compatible with various fluids and viscosities, offering versatility in different applications.
Q: Does it provide high-performance capabilities and reliability?
A: Yes, the High-Performance 360-Degree Dispensing Valve is engineered to deliver high-performance capabilities and reliability, ensuring consistent dispensing results even under demanding conditions.
Q: What industries can benefit from this product?
A: This product is beneficial for industries such as automotive and industrial sectors that require comprehensive and reliable dispensing solutions.
Q: Can this valve be used for dispensing adhesives and coatings?
A: Certainly. This dispensing valve is suitable for various applications, including dispensing adhesives, sealants, lubricants, coatings, solvents, and chemical additives.
