Product Details:
|
| Size: | One Inch | Metal Material: | Aluminium, Iron |
|---|---|---|---|
| Stem Diameter: | 0.51mm | Housing Orifice: | Diameter 2.0mm |
| Spring Material: | Stainless Steel | Rotation Capability: | 360-Degree |
| Highlight: | 360 Degree Aerosol Valve,360-Degree Actuation Valve,All Direction spray valve |
||

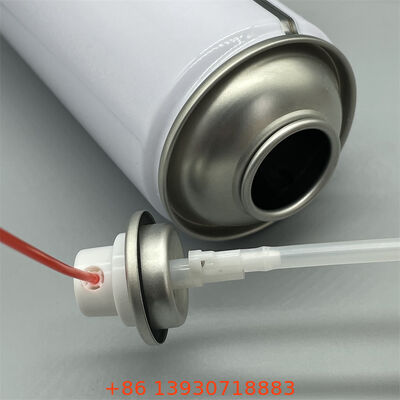

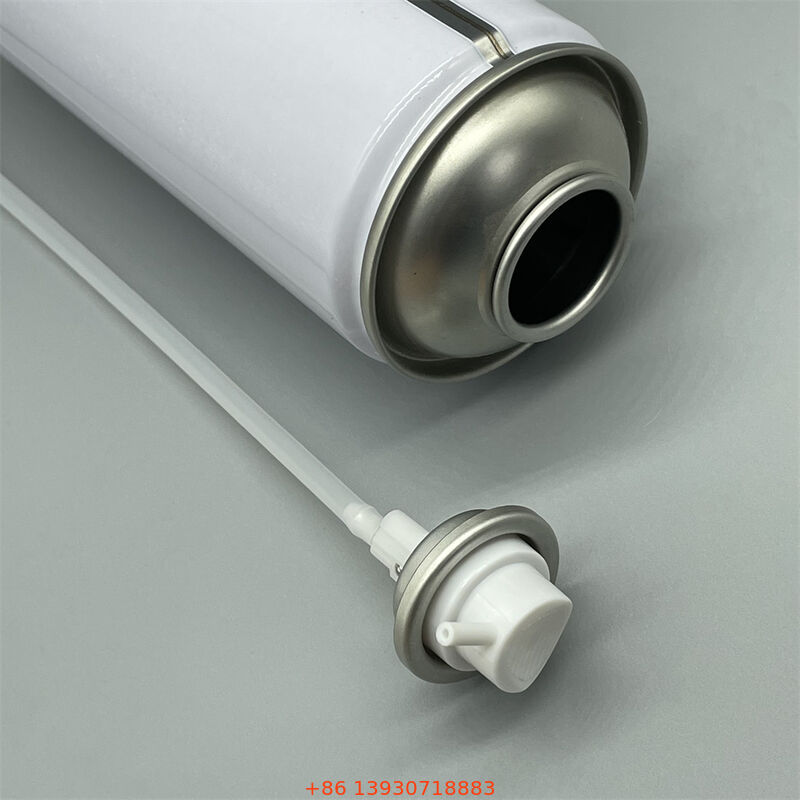

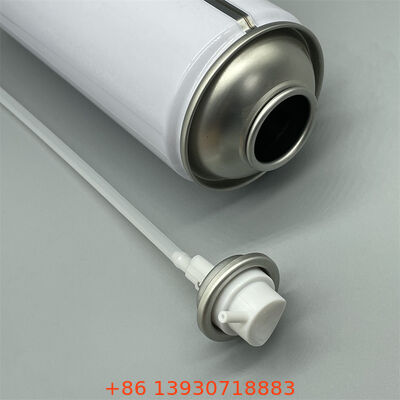

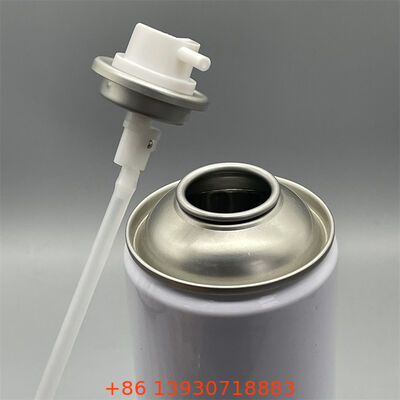

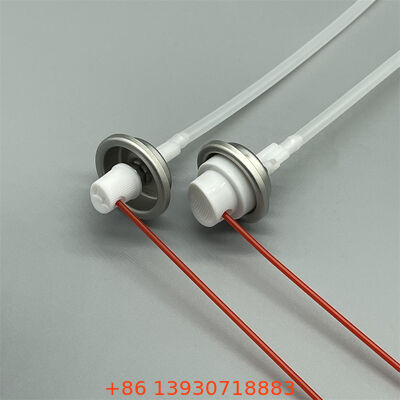

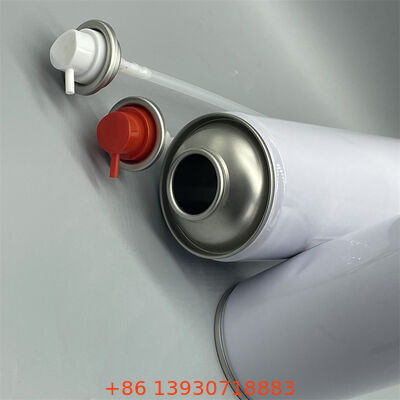

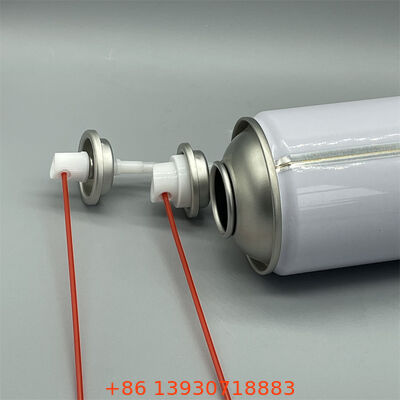

360-Degree Rotatable Aerosol Spray Valve, Universal Fine Mist Dispensing Valve for
Product Description:
Our full rotation aerosol valve, also known as 360-degree rotatable aerosol spray valve, is a core universal dispensing component designed for standard aerosol cans, delivering flexible all-angle spraying performance for diverse daily chemical and industrial applications. This multi-angle aerosol dispenser valve abandons traditional directional spraying limitations, supporting free vertical, horizontal and inverted spraying without dead angles, perfectly adapting to complex operation environments.
Bullet Points:
Specific Application Scenario:
The High-Performance 360-Degree Dispensing Valve is particularly suitable for automotive assembly applications, such as dispensing adhesives, sealants, and lubricants, where precise and uniform dispensing is critical for ensuring quality and efficiency. It can also be used in industrial manufacturing processes for dispensing coatings, solvents, and chemical additives, ensuring accurate and controlled application.
Specifications:
| Component | Part No. | Part Description |
| Mounting cup | 1-F2 | Both sides with clear lacquered tinplate ,with down dimples |
| Outer gasket | 1-G1 | Buna |
| Inner gasket | 1-B4 | Neoprene |
| Stem | 1-A7 | Orange color, double orifice 2X diameter 0.51mm |
| Spring | 1-C1 | Stainless steel |
| Housing | 1-D1 |
all direction valves housing tail orifice: diameter 2.0mm with stainless steel ball white |
![]()
![]()
![]()
![]()
![]()
FAQ:
Q: Can this dispensing valve provide comprehensive and uniform dispensing in a 360-degree direction?
A: Yes, the 360-Degree Dispensing Valve enables comprehensive and uniform dispensing, ensuring consistent coverage and precise distribution of liquids or fluids.
Q: Is this valve compatible with different fluids and viscosities?
A: Absolutely. This dispensing valve is designed to be compatible with various fluids and viscosities, offering versatility in different applications.
Q: Does it provide high-performance capabilities and reliability?
A: Yes, the High-Performance 360-Degree Dispensing Valve is engineered to deliver high-performance capabilities and reliability, ensuring consistent dispensing results even under demanding conditions.
Q: What industries can benefit from this product?
A: This product is beneficial for industries such as automotive and industrial sectors that require comprehensive and reliable dispensing solutions.
Q: Can this valve be used for dispensing adhesives and coatings?
A: Certainly. This dispensing valve is suitable for various applications, including dispensing adhesives, sealants, lubricants, coatings, solvents, and chemical additives.
