Product Details:
|
| Metal Type: | TINPLATE | Use: | Aerosol |
|---|---|---|---|
| Material: | Metal | Mounting Cup: | Plain Tinplate/ One -inch |
| Stem: | Orange, With Double Orifices, Orifice Diameter 0.51mm | Housing: | Natural Color,with Single Tail Orifice Diameter 2mm |
| Diptube Length: | As Per The Buyer's Request | Insert Hole Dia. Of Actuator: | Different Kinds |
| Equipments: | High Speed Pre-install Equipments | Actuator: | Different Series |
| Port: | Tianjin,China | ||
| High Light: | 360degree Aerosol Spray Valve,360degree aerosol can valve,Aerosol Spray Valve For Tin Cans |
||

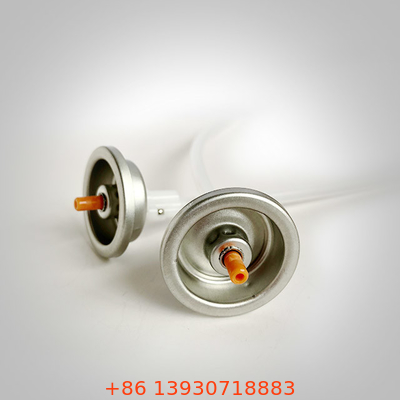

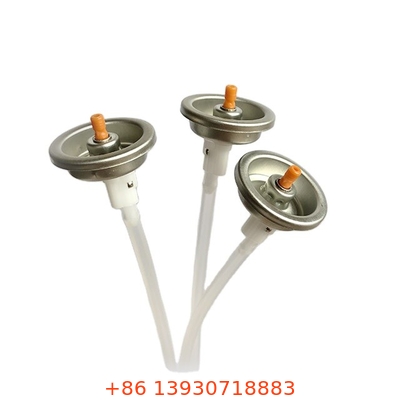

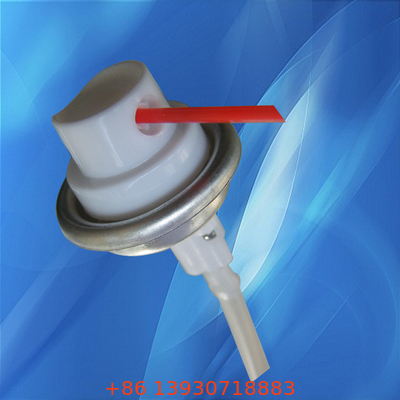

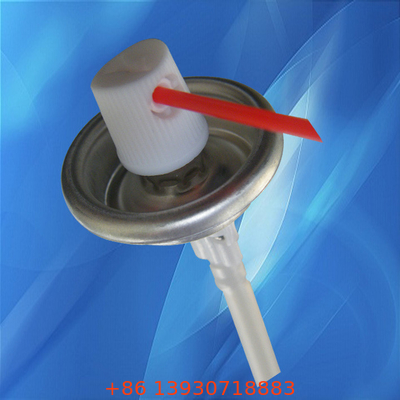

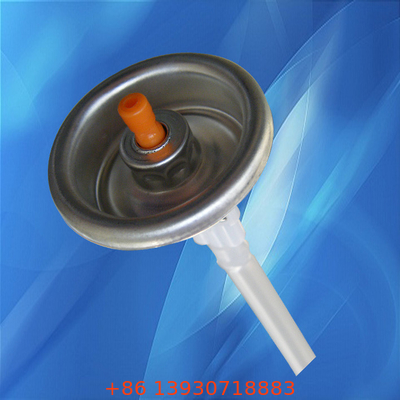

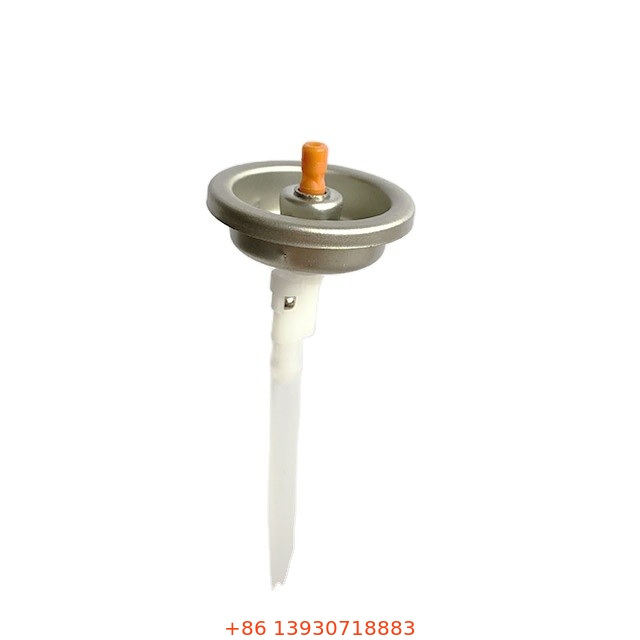

Universal valve
1. One-inch fast filling valve, activated by low pressure
2. Able to spread 360 degree, for automobile and industrial aerosol product.
Applications:
360 degree valve is well suitable in anti-rust spray,silicon mould release,car-cared products,etc.
Specifications:
Code:JC-227B2
|
Component
|
Part No.
|
Part Description
|
|
1.Mounting Cup
|
1-F2 |
Plain tinplate ,with down dimples
|
|
2. Outer Gasket
|
1-G1 |
Buna
|
|
3. Inner Gasket
|
1-B7 |
Neoprene(N-205)
|
|
4. Stem
|
1-A2 |
Double Orifice :2×0.020''(Orange)
|
|
5. Spring
|
1-C1 |
Stainless steel
|
|
6. Housing
|
1-DB 1-D2 |
All direction valve’s housing: white; stainless steel ball. housing without side orifice, tail orifice0.080"(2.0mm) material color |
|
7. Dip Tube
|
1-E1 |
Standard (Natural)250mm |
|
Suitability Anti-rust ,silicon mould release, cleaning,360 degree all direction valves , car care spray |
||
Thanks for checking our products ,and we are specialized in the aerosol valve area for many years.We always devote ourself to produce the best quality aerosol valves.
We are also glad to provide Free Samples for your reference,
Any question ,please let me know.
Nice day
