Food Grade Bag on Valve Aerosol Packaging System
Advanced dispensing solution for edible oils, sauces, and liquid food applications with contamination-free performance.
Product Overview
The Bag-on-Valve (BOV) aerosol valve system is an advanced dispensing solution designed for high-performance and contamination-free applications. Unlike traditional aerosol systems, the product is separated from the propellant using a multi-layer laminated bag, ensuring maximum purity and product integrity.
This system uses compressed air or nitrogen as the propellant, making it environmentally friendly and ideal for sensitive formulations such as pharmaceuticals, cosmetics, and food-grade products. The BOV technology allows for 360-degree spraying, enabling consistent dispensing even when the container is tilted or upside down.
Applications
- Food & Beverage: Cooking oils, flavor sprays, whipped creams, and syrups
- Personal Care & Cosmetics: Deodorants, hair sprays, mousse, and creams
- Pharmaceuticals: Medical sprays, antiseptics, and inhalers
- Industrial Use: Lubricants, paints, and cleaning solutions
Key Features
- Versatile: Compatible with liquids, gels, foams, and pastes
- Safe & Hygienic: Prevents contact between product and propellant
- Eco-Friendly: Reduces waste and can support refillable applications
- Consistent Performance: Smooth, even spray until the container is empty
- Customizable: Multiple valve sizes, actuator types, and spray patterns
Technical Specifications
| Product Code |
Max Capacity |
Size |
Suitable Tank Type |
Remark |
| V53-12 | 250ml | 190*100 | ∅53*210 can | Flat shoulder bag |
| V51-10 | 600ml | 280*120 | ∅66*310 | Round bottom oblique shoulder bag |
| V52-10 | 500ml | 213*115 | ∅65*240 | Round bottom oblique shoulder bag |
| V29-10 | 450ml | 203*115 | ∅65*230 | Round bottom oblique shoulder bag |
| V32-12 | 300ml | 185*100 | ∅59*210 | Flat shoulder bag with round bottom |
| V33-12 | 220ml | 145*100 | ∅53*180 | Flat shoulder bag with round bottom |
| V50-12 | 150ml | 125*90 | ∅50*150/155 | Flat shoulder bag with round bottom |
| V45-12 | 120ml | 100*90 | ∅50*125 | Flat shoulder bag with round bottom |
| V55-12 | 80ml | 100*80 | ∅40*120/130 | Flat shoulder bag with round bottom |
| V54-12 | 65ml | 90*80 | ∅40*110/∅35*110 | Flat shoulder bag with round bottom |
| V48-12 | 50ml | 90*65 | ∅35*110 | Flat shoulder bag with round bottom |

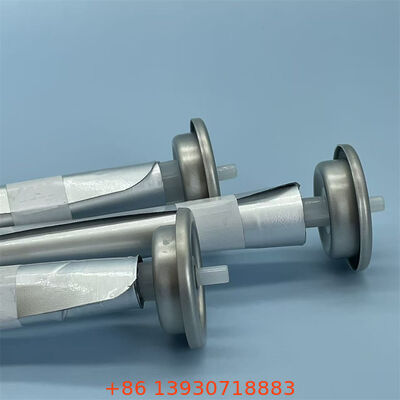

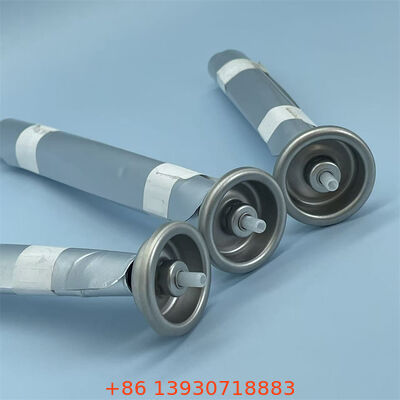

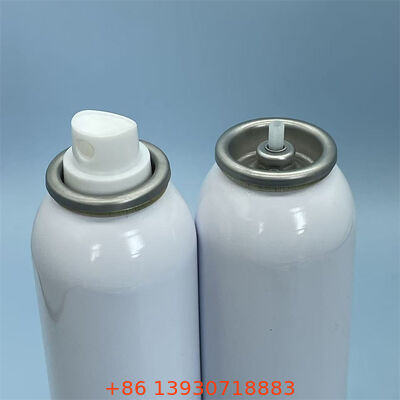

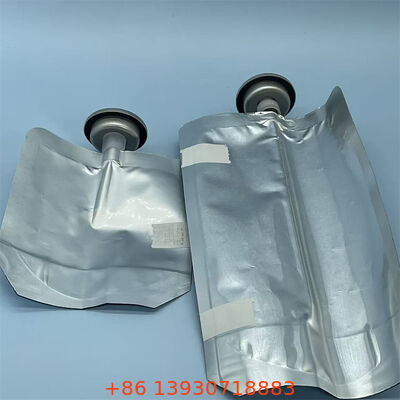

Product Images
Frequently Asked Questions
What is a Bag-on-Valve system?
A Bag-on-Valve system separates the product from the propellant using a flexible bag inside the can, allowing 100% product use, preventing contamination, and delivering consistent spray.
What products can I use with BOV systems?
BOV systems are compatible with liquids, gels, foams, pastes, creams, and even food-grade sprays like cooking oils or whipped cream.
Are BOV systems safe for food and pharmaceuticals?
Yes. Food-grade and pharmaceutical BOV systems use materials approved for safety, hygiene, and contamination-free dispensing.
Can BOV valves be refillable?
Some BOV systems are designed for refillable applications, especially for sustainable or eco-friendly sprays. Always confirm with the manufacturer.
How is BOV different from a traditional aerosol can?
Unlike conventional aerosols, BOV separates the product from propellant, allowing 100% product evacuation, reducing waste, and preventing contamination.
What industries use BOV systems?
BOV is widely used in food & beverage, personal care, cosmetics, pharmaceuticals, and industrial sectors like lubricants, paints, and cleaning products.
