20mm Bag-On-Valve Aerosol Systems Protecting Sensitive Formulas from Contamination

20mm Bag-On-Valve Aerosol Systems Protecting Sensitive Formulas from Contamination
20mm Bag-On-Valve Aerosol Systems Protecting Sensitive Formulas from Contamination 20mm Bag-On-Valve Aerosol Systems Protecting Sensitive Formulas from Contamination 20mm Bag-On-Valve Aerosol Systems Protecting Sensitive Formulas from Contamination 20mm Bag-On-Valve Aerosol Systems Protecting Sensitive Formulas from Contamination

Large Image :  20mm Bag-On-Valve Aerosol Systems Protecting Sensitive Formulas from Contamination

Product Details:
Place of Origin: CHINA
Brand Name: JINCHENG
Certification: ISO 9001
Model Number: JCGL
Payment & Shipping Terms:
Minimum Order Quantity: 100000 sets
Price: Negotiable
Packaging Details: Carton
Delivery Time: 5-10 work days
Payment Terms: L/C,T/T
Supply Ability: 10,000,000 sets per month
Contact Now

20mm Bag-On-Valve Aerosol Systems Protecting Sensitive Formulas from Contamination

Description
Material: Tinplate Size: 20mm
Use: Pharmaceuticals; Premium Cosmetics; Healthcare & Dermo-cosmetics Highlight: Gold And Silver Colored; 25ml And 30ml For The Bags; Ultimate Product Purity And Precision Dispensing
Highlight:

bag-on-valve

,

aerosol filling system

,

Protecting Sensitive Formulas from Contamination

20mm Bag-On-Valve Aerosol Systems Protecting Sensitive Formulas from Contamination
The 20mm Bag-on-Valve (BOV) is an advanced aerosol dispensing technology featuring a multi-layer laminated pouch permanently fixed to a valve system within a canister. The product formula remains isolated in this sterile pouch while inert propellant (compressed air or nitrogen) fills the space between pouch and canister. Actuation compresses the pouch via propellant pressure, delivering pure product through the valve without propellant contact. The male thread design provides secure connection to female canister receptacles.
Key Features
  • Complete Product-Propellant Separation: Hermetically sealed pouch maintains formula purity, viscosity and efficacy
  • Superior Oxidation Protection: Minimizes oxygen exposure to extend shelf life of sensitive ingredients
  • 360-Degree & Upside-Down Dispensing: Enables complete container evacuation in any orientation
  • Consistent Dosing & Spray Quality: Delivers uniform dose and spray pattern without clogging
  • Versatile Formula Compatibility: Accommodates wide viscosity range from watery solutions to thick creams
  • Male Threaded Actuator: Provides secure, leak-proof connection for high-value product assemblies
Application Scenarios
  • Pharmaceuticals: Metered-dose inhalers, nasal sprays, wound care sprays, and topical ointments requiring sterility
  • Premium Cosmetics: Hair care serums, facial sunscreens, leave-in conditioners, and antioxidant skin mists
  • Healthcare & Dermo-cosmetics: Sterile sprays for sensitive skin and post-procedure care
  • Food & Culinary: Delicate edible oils, flavorings, and alcohol-based toppings
  • Electronics & Industrial: Conductive coatings, lubricants, and solvents requiring contamination-free application
20mm Bag-On-Valve Aerosol Systems Protecting Sensitive Formulas from Contamination 0

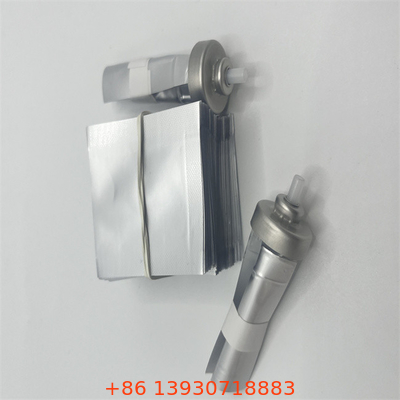

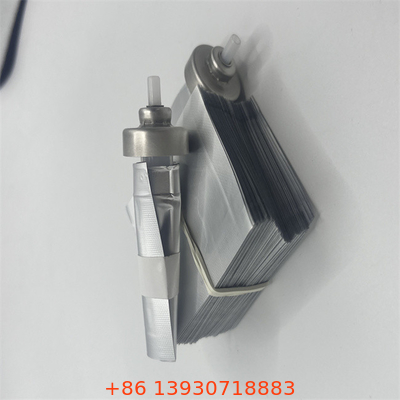

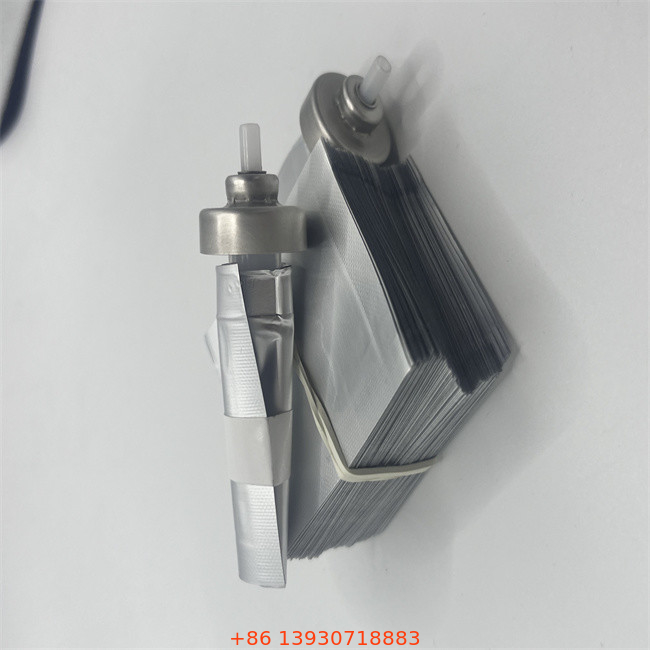

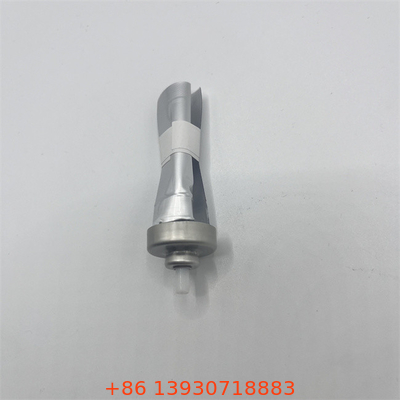

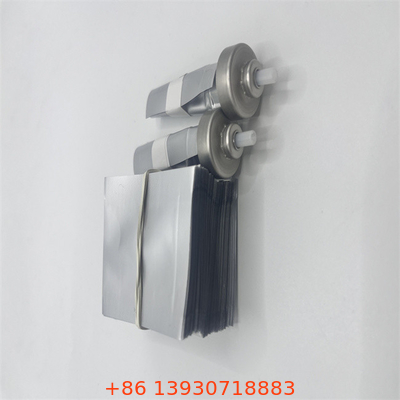

Male Bag-on-Valve component
20mm Bag-On-Valve Aerosol Systems Protecting Sensitive Formulas from Contamination 1
BOV system diagram
20mm Bag-On-Valve Aerosol Systems Protecting Sensitive Formulas from Contamination 2
Industrial filling machine
20mm Bag-On-Valve Aerosol Systems Protecting Sensitive Formulas from Contamination 3
Pharmaceutical applications
20mm Bag-On-Valve Aerosol Systems Protecting Sensitive Formulas from Contamination 4
Cosmetic packaging
