Professional-Grade Bag on Valve Dispensing System for Industrial Lubricants and Chemicals with Contamination-Free Delivery

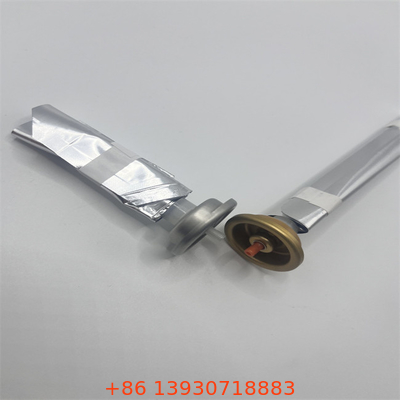

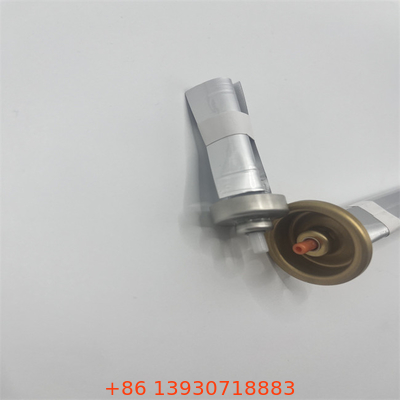

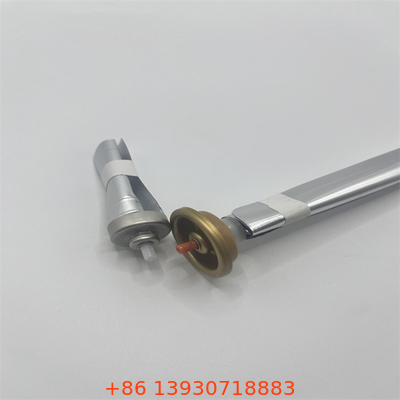

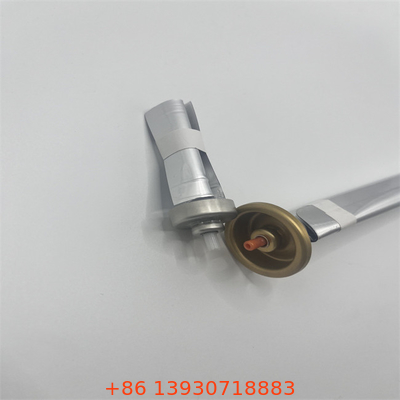

Our industrial-grade Bag-on-Valve (BOV) technology represents a revolutionary advancement in precision dispensing for demanding sectors including manufacturing, automotive, aerospace, and maintenance. This engineered system features a robust multi-layered pouch hermetically sealed within a reinforced aluminum canister, creating an absolute barrier between your valuable product and the propellant.
The operational principle guarantees superior performance. When the actuator is engaged, the propellant compresses the bag, forcing the product through the valve without any contact with the driving gas. This mechanism delivers a consistent, pure, and predictable stream or spray pattern every time, regardless of the can's orientation or fill level.
Key Features:
- Absolute Contamination Prevention: The hermetically sealed pouch ensures complete isolation from the propellant, guaranteeing pure and uncontaminated output for sensitive applications.
- Precision Dispensing & Control: Delivers a consistent, metered dose with every actuation, reducing overspray and ensuring accurate application of expensive materials.
- Superior Chemical Compatibility: The internal bag is constructed from advanced laminates resistant to a wide spectrum of aggressive industrial chemicals and solvents.
- Full-Range Operational Ability: The bag-on-valve mechanism provides reliable performance at any angle, essential for maintenance in hard-to-reach areas.
- Virtually Total Evacuation: Achieves over 99% product evacuation, minimizing waste and ensuring you utilize nearly all of the product you pay for.
Application Example:
An aerospace technician needs to apply a specific, expensive conductive lubricant to electrical connectors within a tightly packed avionics bay. Using a lubricant packaged in our BOV system, they can spray upside-down with pinpoint accuracy. The lubricant is dispensed pure and uncontaminated, without any propellant mixing or risk of moisture ingress, ensuring perfect conductivity and preventing system failure.
Technical Specifications
| Model |
Max Capacity |
Length * Height (mm) |
Aerosol Can Size |
| JC-100-P250 |
300ml |
185 * 100 |
59 * 210 |
| JC-100-P200 |
220ml |
145 * 100 |
53 * 180 |
| JC-100-P150-1 |
150ml |
125 * 90 |
50 * 150/155 |
| JC-100-P100 |
120ml |
100 * 90 |
50 * 125 |
| JC-100-P80 |
80ml |
100 * 80 |
40 * 120/130 |
| JC-100-P65 |
65ml |
90 * 80 |
40 * 110/35 * 110 |
| JC-100-P50 |
50ml |
90 * 65 |
35 * 110 |
Frequently Asked Questions
Q: How does the bag-on-valve system protect my sensitive electronic cleaners from contamination?
A: The product is completely sealed within its own pouch. The propellant remains entirely outside this bag, so there is zero risk of it mixing with or contaminating the formula, which is critical for electronics where residue can cause damage.
Q: Can this system handle high-viscosity products like grease or heavy adhesives?
A: Yes, the valve and actuator can be specifically engineered to manage high-viscosity materials, providing a consistent stream or bead rather than a fine mist.
Q: Why is the 360-degree operation important for industrial applications?
A: It allows maintenance professionals to apply products in any orientation--upside-down, sideways, or right-side-up--without any loss of pressure or performance, which is essential for working on complex machinery.
Q: Is the propellant safe for use in confined industrial spaces?
A: Our systems typically use inert, non-flammable propellants like nitrogen or compressed air, making them much safer for use in confined spaces compared to traditional flammable propellant-based aerosols.
Q: What makes your industrial BOV system more reliable than standard aerosols?
A: It is constructed with heavier-gauge materials, more robust seals, and valves designed to withstand harsh chemicals, constant use, and the demanding conditions of industrial environments, ensuring reliable performance every time.
